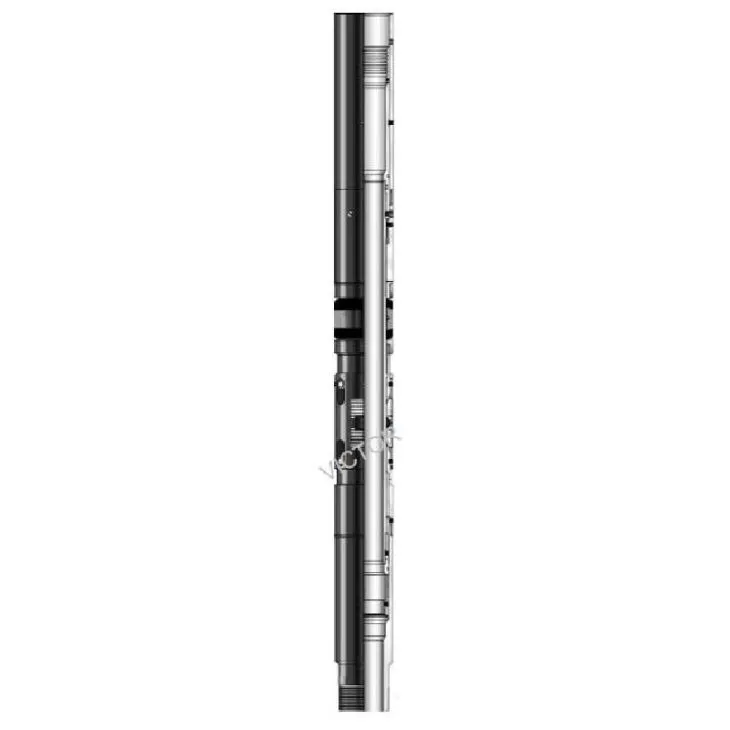

TSC series ib txoj hlua khaws tau cov khoom ntim khoom

● Qhov chaw ntawm Keeb Kwm: Suav
● Hom Lub Npe: VCTSY
● Ntawv pov thawj: API 11D1
● Qauv Zauv: TSC-7, TSC-7-5/8, TSC-9 5/8
● Yam tsawg kawg yuam kom muaj nuj nqis: 10 Poob
● Nqe: RMB/USD
Details Ntim Cov Lus Qhia: Plywood Case
Time Lub Sijhawm Muab Tawm: Raws li tau thov
Terms Cov nqe lus them nqi: T/T.
Ab Muaj peev xwm muab khoom: Raws li qhov kev thov

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

TSC-7 --- TSC -9 5/8 (Ib Leeg Ib Qho Tau Txais Cov Khoom Ntau Lawm), WP 5000-10000psi, AISI4140 /9Cr1Mo /13Cr /S13Cr /Inconel

TSC series ib txoj hlua khaws tau cov khoom ntim khoom yog cov txheej txheem txheej txheem ntim khoom siv rau kev tsim khoom zoo. Khiav los ntawm tubing los ntawm cov cuab yeej teeb tsa, lub tshuab ntim khoom no yuav raug teeb tsa los ntawm kev nias lub cuab yeej teeb tsa kom txiav cov pins. Cov khoom no tuaj yeem siv rau hauv qhov chaw siab thiab kub ib puag ncig.

Nta

Reliability Muaj kev ntseeg siab thiab tsim qauv

● Tsawg teeb siab

● Loj txoj kab uas hla loj

● Tso tawm thiab khaws los ntawm cov cuab yeej

Selection Cov khoom siv xaiv rau elastomer: Nitrile, HNBR thiab Aflas

Selection Cov khoom xaiv rau lub cev: AISI4140, 9Cr1Mo, 13Cr, S13Cr thiab Inconel

● Ua haujlwm siab yog 5000psi ~ 10000psi

● Txhua hom xov muaj.

Cov Kev Ntsuas

Code	Casing cov cai	Casing Nyhav (phaus)	OD (hauv. [mm])	Upper foob (hauv. [mm])	Sab foob (hauv. [mm])
TSC-7	7	23-26	6[ 152.4]	4.75[120.6]	4[101.6]
TSC-7	7	29-35	5.82[147.8]	4.75[120.6]	4[101.6]
TSC-7 5/8	7 5/8	29.7	6.69[169.9]	4.75[120.6]	3.875[98.4]
TSC -9 5/8	9 5/8	47-53.5	8.319 [211.3]	6[152.4]	4.145[105.2]

Cim npe nrov: TSC series ib txoj hlua khaws cov khoom ntim khoom, Tuam Tshoj, tuam ntxhab, kho, hauv Tshuag
