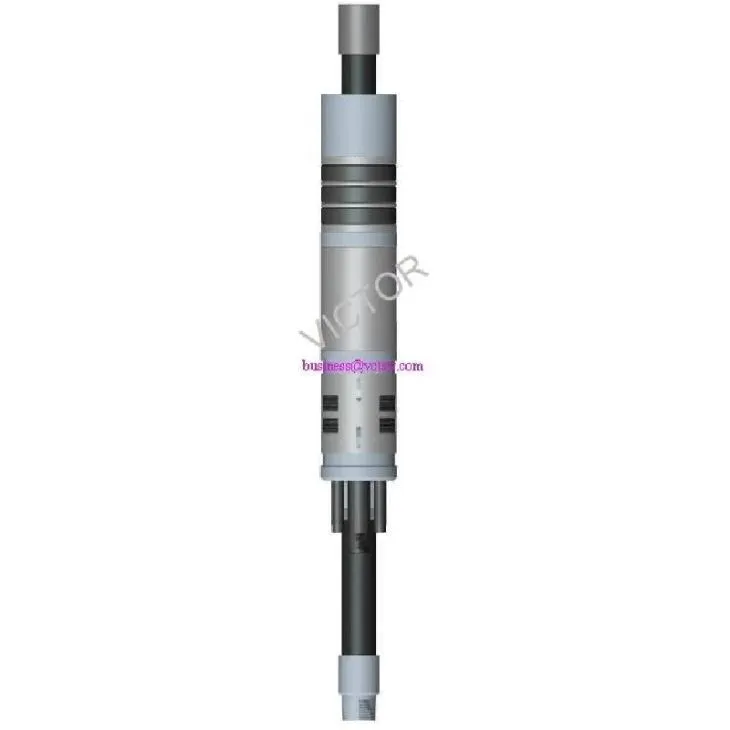

Multi -String Completion Packer rau Kev Tsim Khoom Zoo
● Hom Lub Npe: VCTSY
● Ntawv pov thawj: API 11D1
● Qauv Zauv: VEP-3 1/2 -9 5/8, VEP-4 1/2-9 5/8
● Yam tsawg kawg yuam kom muaj nuj nqis: 10 Poob
● Nqe: RMB/USD
Details Ntim Cov Lus Qhia: Plywood Case
Time Lub Sijhawm Muab Tawm: Raws li tau thov
Terms Cov nqe lus them nqi: T/T.
Ab Muaj peev xwm muab khoom: Raws li qhov kev thov
Multi-string Production Packer (VEP-3 1/2 -9 5/8 --- VEP-4 1 /2-9 5/8), WP 5000-7500psi, AISI4140 /9Cr1Mo /13Cr /S13Cr /Inconel
VEP series ntau txoj hlua tsim cov ntim khoom tau ntim cov ntim khoom. Lub tshuab ntim khoom no tuaj yeem siv rau ob-tubing lossis lub zog siab hluav taws xob submersible twj tso kua mis tsim tau zoo nrog rau ntau thaj tsam ntse ua tiav. Lub tshuab ntim khoom tuaj yeem teeb tsa los ntawm kev thov qis rau txoj hlua ntev thiab tso tawm los ntawm kev rub ncaj ntawm txoj hlua ntev.
Nta
Reliability Muaj kev ntseeg siab
● Tso lub zog hloov kho los ntawm kev kho tus lej ntawm cov ntsia hlau ntsia ntsia ntsia
● Plaub txoj hlua tuaj yeem siv rau kev tsim ua ob txoj hlua, kev hla kab, kev tso lub qhov tso pa tawm, kev siv tshuaj lom lossis kev sib txuas lus fiber.
Selection Cov khoom siv xaiv rau elastomer: HNBR, Nitrile thiab Aflas.
Selection Cov khoom xaiv rau lub cev: AISI4140, 9Cr1Mo, 13Cr, S13Cr thiab Inconel
● Teeb tsa los ntawm kev thov qis rau txoj hlua ntev
● Ua haujlwm siab yog 5000psi ~ 7500psi.
● Txhua hom xov muaj.
Cov Kev Ntsuas
Code | Cov cai | Casing cov cai | Casing Nyhav | OD | Thawj txoj hlua ID | Ob txoj hlua ID (hauv. [Mm]) | Peb thiab plaub txoj hlua ID (hauv. [Hli]) |
VEP-3 1/2 | 3 1/2 | 9 5/8 | 43.5-47 | 8.5[215.9] | 2.99[76] | 1.96[50] | 1.0[25.4] |
47-53.5 | 8.38[212.7] | ||||||
VEP-4 1/2 | 4 1/2 | 9 5/8 | 43.5-47 | 8.5[215.9] | 3.94[100] | 1.6[40.6] | 1.0[25.4] |
47-53.5 | 8.38[212.7] |
Cim npe nrov: Multi -String Completion Packer for Production Zoo, Tuam Tshoj, tuam ntxhab, kho, hauv Tshuag
