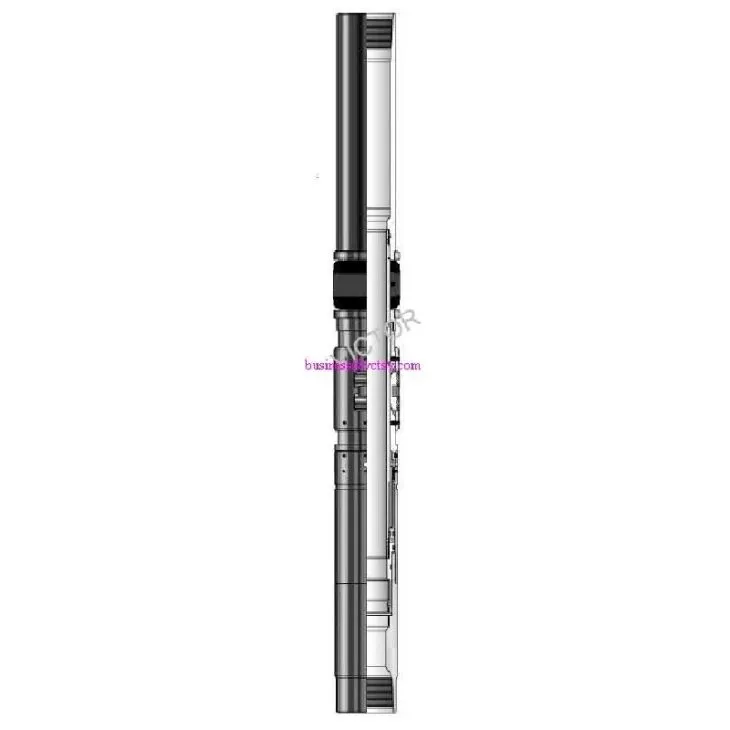

SC7 Cov Khoom Packer

● Qhov chaw ntawm Keeb Kwm: Suav
● Hom Lub Npe: VCTSY
● Ntawv pov thawj: API 11D1
● Qauv Zauv: SC-7, SC-7-5/8, SC-9 5/8
● Yam tsawg kawg yuam kom muaj nuj nqis: 10 Poob
● Nqe: RMB/USD
Details Ntim Cov Lus Qhia: Plywood Case
Time Lub Sijhawm Muab Tawm: Raws li tau thov
Terms Cov nqe lus them nqi: T/T.
Ab Muaj peev xwm muab khoom: Raws li qhov kev thov

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

SC-7 --- SC -9 5/8 (Ib Leeg Ib Qho Tau Txais Cov Khoom Ntau Lawm), WP 5000-10000psi, AISI4140/13Cr

SC series ib txoj hlua tuaj yeem nqa tau cov ntim khoom tau ntim cov ntim khoom. Kev xa los ntawm tubing, cov ntim khoom yuav raug teeb tsa los ntawm kev nias lub tubing, tom qab ntawd kaw lub raj thiab casing annulus. Lub tshuab ntim khoom tuaj yeem khaws los ntawm cov cuab yeej. Cov khoom no tuaj yeem siv rau hauv qhov chaw siab thiab kub ib puag ncig.

Nta

Reliability Muaj kev ntseeg siab thiab tsim qauv

● Loj txoj kab uas hla loj

● Tso tawm thiab khaws los ntawm cov cuab yeej

Selection Cov khoom xaiv rau lub cev: AISI4140 thiab 13Cr.

● Txhim khu kev qha

● Teeb tsa siab yog 2500psi.

● Ua haujlwm siab yog 5000psi ~ 10000psi.

● Txhua hom xov muaj.

Cov Kev Ntsuas

Code	Casing cov cai	Casing Nyhav (phaus)	OD (hauv. [mm])	Upper foob (hauv. [mm])	Sab foob (hauv. [mm])
SC-7	7	23-26	6[ 152.4]	4.75[120.6]	4[101.6]
SC-7	7	29-35	5.82[147.8]	4.75[120.6]	4[101.6]
SC-7 5/8	7 5/8	29.7	6.69[169.9]	4.75[120.6]	3.875[98.4]
SC -9 5/8	9 5/8	47-53.5	8.319 [211.3]	6[152.4]	4.145[105.2]

Cim npe nrov: SC7 Production Packer, Suav teb, cov chaw tsim khoom, kho kom haum, hauv Tshuag
