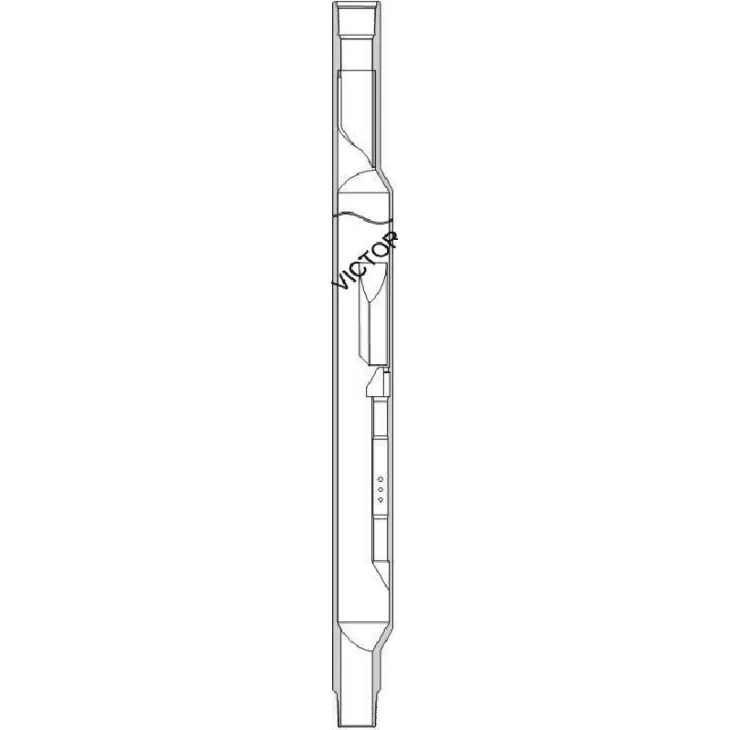

Sab Pocket Mandrels SPM-288-1
● Hom Lub Npe: VCTSY
● Ntawv pov thawj: API 19G1
● Qauv Zauv: SPM-288-1, SPM-350-1, SPM-288-2, SPM-350-2
● Yam tsawg kawg yuam kom muaj nuj nqis: 10 Poob
● Nqe: RMB/USD
Details Ntim Cov Lus Qhia: Plywood Case
Time Lub Sijhawm Muab Tawm: Raws li tau thov
Terms Cov nqe lus them nqi: T/T.
Ab Muaj peev xwm muab khoom: Raws li qhov kev thov
Sab Pocket Mandrels(SPM-288-1 --- SPM-350-2), Hla Hla Ntu, WP 10150psi, Ntau Yam Khoom Xaiv
SPM series puag ncig ntu ntu ntu sab hauv hnab tshos mandrels tau siv nrog 1" OD thiab 1.5" OD wireline rov tau txais cov roj nqa li qub.
Kev hloov pauv ntu ntu txhim kho lub peev xwm ntawm kev ua siab ntev. Cov lus qhia ua hauv kab thaiv tuaj yeem ua kom ntseeg tau qhov ua tau zoo thiab rub ntawm cov kab hluav taws xob rov tuaj yeem nqa cov pa nqa mus rau lub hnab tshos. Lub hnab ntim khoom sib txawv tshwj xeeb txhim kho kev ntseeg tau, thiab qhov loj ntawm lub hnab ntim khoom tau tsim raws li API tus qauv kom haum rau tus qauv nqa roj.
Nta
● Nruab nrog lub hnab tshos tseem ceeb
● Muaj ntau yam khoom siv los ua kom tau raws li cov neeg siv khoom sib txawv.
● Muaj feem xyuam rau kev ua haujlwm kab xov tooj
Li qub rau SPM Series Sab Pocket Mandrels
Roj Nqa Valve | Dummy lub valve | Orifice Valve | Circulating Valve | Tshuaj Txhaj Tshuaj Valve |
FWB-100 | RD-1 | KWB-1 | XHF-1 | HXF1-1 |
Cov Kev Ntsuas
Code | Cov cai | Max. OD | Drift txoj kab uas hla (hauv. [Mm]) | Siab siab | Latch | Kickover Tuam |
SPM-288-1 | 2.875[73] | 4.67[118.6] | 2.347[59.6] | 10150[70.0] | BK-2 | OK1-2 |
SPM-350-1 | 3.50 [88.9] | 5.313[134.9] | 2.87[72.8] | 10150[70.0] | BK-2 | OK1-1 |
SPM-288-2 | 2.875[73] | 5.50[139.7] | 2.347[59.6] | 10150[70.0] | RK | OK1-2 |
SPM-350-2 | 3.50 [88.9] | 5.97[151.6] | 2.87[72.8] | 10150[70.0] | RK | OK1-1 |
Cim npe nrov: Sab Pocket Mandrels SPM-288-1, Suav teb, cov chaw tsim khoom, kho kom haum, hauv Tshuag
