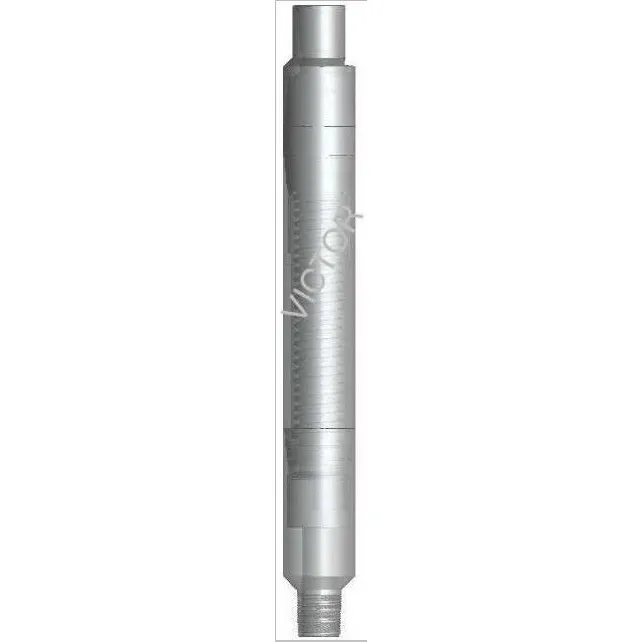

Subsurface Safety Valves rau siab
● Hom Lub Npe: VCTSY
● Ntawv pov thawj: API 14A
● Qauv Zauv: TH -2 7/8 -5.135, TH -3 1/2 -5.7, TH -4 1/2 -7.3, TH -5 1/2 -8.375, TH -7 -8.35
● Yam tsawg kawg yuam kom muaj nuj nqis: 10 Poob
● Nqe: RMB/USD
Details Ntim Cov Lus Qhia: Plywood Case
Time Lub Sijhawm Muab Tawm: Raws li tau thov
Terms Cov nqe lus them nqi: T/T.
Ab Muaj peev xwm muab khoom: Raws li qhov kev thov
Subsurface Safety Valves (API 14A SCSSV) rau qhov siab ib puag ncig WP 10000psi
TH series subsurface kev nyab xeeb li qub yog tubing rov tuaj yeem tswj tau lub ntsej muag kev nyab xeeb ntawm lub ntsej muag siv rau qhov chaw siab. Thaum teeb tsa, lub valve kev nyab xeeb txuas nrog rau saum npoo los ntawm kab tswj. Lub siab los ntawm qhov chaw tau kis los ntawm kab kev tswj hwm, ua raws li lub piston ntawm lub valve kev nyab xeeb thiab tswj kev qhib thiab kaw lub valve kev nyab xeeb. Cov khoom lag luam no suav nrog tus kheej sib npaug thiab tsis sib npaug.
Nta
● Lub siab los ntawm qhov chaw tswj qhov qhib thiab kaw ntawm lub valve kev nyab xeeb.
Types Hom sib npaug thiab tsis sib npaug hom muaj.
Product Cov khoom no tuaj yeem sib phim nrog tus qauv txiv mis, thiab FNP series txiv mis tau pom zoo.
Selection Cov khoom xaiv rau lub cev: 9Cr1Mo, 13Cr, S13Cr, 17-4H thiab Inconel.
● Cov txheej txheem ntsuas ua tau raws li API14A kev qhia tshwj xeeb.
Parts Cov ntu tseem ceeb siv cov khoom siv ntawm lub zog siab.
● Ua haujlwm siab yog 10000psi.
● Ua haujlwm kub yog 160 ℃.
● Txhua hom xov muaj.
Cov Kev Ntsuas
| Code | Cov cai | OD (hauv. [mm]) | ID (hauv. [mm]) | Foob lub qhov muag (hauv. [mm]) | Tswj kab Xov | Ua haujlwm siab (psi) | Txhim kho qhov tob (m) |
TH-2 7/8 -5.135 | 2 7/8 | 5.135 [130.43] | 2.379 [60.43] | 2.312 [58.72] | NPT 1/4 los yog NPT 1/8 | 10000 | & nws; 400 |
TS-3 1/2 -5.7 | 3 1/2 | 5.7 [144.8] | 2.87 [72.9] | 2.812 [71.42] | NPT 1/4 los yog NPT 1/8 | 10000 | & nws; 400 |
TS-4 1/2 -7.3 | 4 1/2 | 7.3 [185.42] | 3.87 [98.3] | 3.812 [96.82] | NPT 1/4 los yog NPT 1/8 | 10000 | & nws; 400 |
TS-5 1/2 -8.375 | 5 1/2 | 8.375 [212.73] | 4.625 [98.3] | 4.562 [115.87] | NPT 1/4 los yog NPT 1/8 | 10000 | & nws; 400 |
TSH-7 -8.35 | 7 | 8.35 [212.09] | 4.5 [114.3] | 4.562 [115.87] | NPT 1/4 los yog NPT 1/8 | 10000 | & nws; 400 |
Cim npe nrov: Subsurface Safety Valves rau siab, Suav teb, manufacturers, customized, hauv Tshuag
