Stainless Hlau Downhole Cov Cuab Yeej
● Hom Lub Npe: VCTSY
● Qauv Zauv: WPGV-100, WPGV-150
● Yam tsawg kawg yuam kom muaj nuj nqis: 30 teeb
● Nqe: RMB/USD
Details Ntim Cov Lus Qhia: Plywood Case
Time Lub Sijhawm Muab Tawm: Raws li tau thov
Terms Cov nqe lus them nqi: T/T.
Ab Muaj peev xwm muab khoom: Raws li qhov kev thov

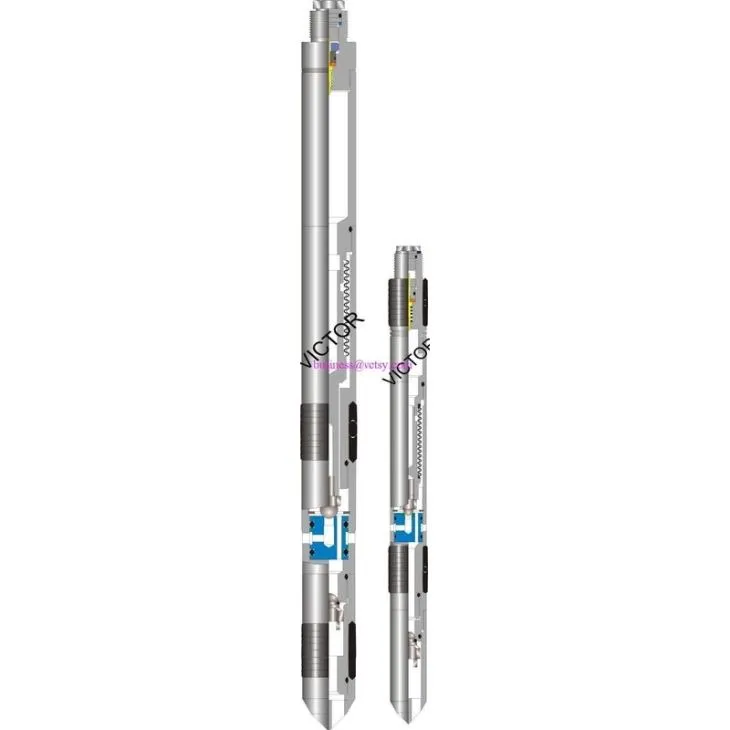

WPGV-100 --- WPGV-150 (Wireline Retrievable Tubing-pressure-operated Gas Lift Valves), Stainless Hlau
Cov kab hluav taws xob rov tuaj yeem rov tau tubing-siab-ua haujlwm roj nqa lub valve yog ib txwm ua haujlwm los ntawm tubing siab. Cov khoom no tuaj yeem siv nrog sab hnab hauv qab mandrel txhawm rau txo tus nqi txij nkawm.
Cov koob li qub no suav nrog 1" OD li qub thiab 1.5" OD li qub.
Nta
● Lub cev yog ua los ntawm cov hlau tsis huv.
● Peb-txheej txheej tshuab raj
● Cov tshuab raj muaj cov cuab yeej txwv cov cuab yeej.
● Tungsten Carbide valve pob qauv
Seats Valve rooj ntawm ntau yam kev qhia tshwj xeeb muaj.
Included Ib qho kev txheeb xyuas qhov suav nrog.
● Kos lub valve tuaj yeem tiv taus 8500psi siab.
● Siab tshaj nitrogen-filling siab yog 1500psi.
● Qhov siab tshaj qhov sib txawv yog 5000psi.
● Sib phim nrog lub hnab tshos sab hauv qab
Cov Kev Ntsuas
Code | OD | Lub taub taub | Latch | Mandrel |
WPGV-100 | 1.0 | 1/8[3.2] | BK-2 | SPM |
FWB-150 | 1.5 | 1/8[3.2] | RK | SPM |
Cim npe nrov: Stainless Hlau Downhole Cov Cuab Yeej, Tuam Tshoj, tuam ntxhab, kho, hauv Tshuag
