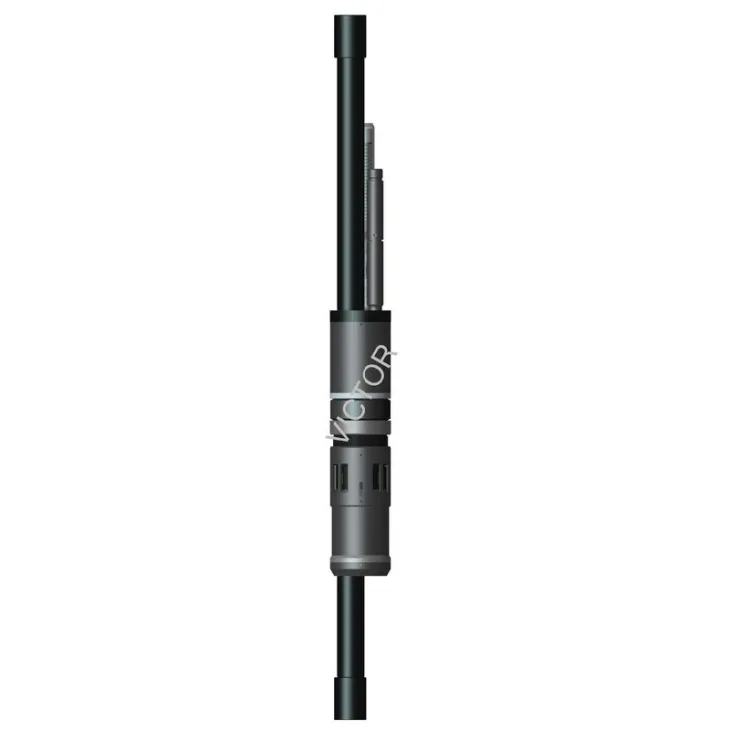

Fais Submersible Pump Packers

● Qhov chaw ntawm Keeb Kwm: Suav
● Hom Lub Npe: VCTSY
● Ntawv pov thawj: API 11D1
● Qauv Zauv: ESP -3 1/2 -9 5/8, ESP -2 7/8 -7 5/8
● Yam tsawg kawg yuam kom muaj nuj nqis: 10 Poob
● Nqe: RMB/USD
Details Ntim Cov Lus Qhia: Plywood Case
Time Lub Sijhawm Muab Tawm: Raws li tau thov
Terms Cov nqe lus them nqi: T/T.
Ab Muaj peev xwm muab khoom: Raws li qhov kev thov

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

Fais Submersible Pump Packers (ESP-3 1/2 -9 5/8 --- ESP-2 7/8 -7 5/8), Peb npaug lossis ntau dua

ESP series hluav taws xob submersible twj ntim tau ntim cov tshuab ntim khoom siv hauv cov twj siv hluav taws xob kom zoo. Tus neeg ntim khoom muab peb txoj hauv kev. Thawj txoj hlua yog rau kev tsim cov kua dej ntws, txoj hlua thib ob rau kev teeb tsa lub qhov cua tso pa tawm, thiab txoj hlua thib peb rau kev hla kab. Thaum lub zog qis los ntawm qhov chaw tau thov rau txoj hlua tseem ceeb, lub ntim khoom yuav raug teeb tsa. Tus neeg ntim khoom yuav raug tso tawm los ntawm rub txoj hlua tseem ceeb los txiav lub nplhaib.

Nta

Reliability Muaj kev ntseeg siab

● Tso lub zog hloov kho los ntawm kev siv lub nplhaib sib txawv.

Body Lub cev luv ua kom yooj yim ncig ua haujlwm.

Selection Cov khoom siv xaiv rau elastomer: Nitrile, HNBR thiab Aflas.

Selection Cov khoom xaiv rau lub cev: AISI4140 lossis AISI4340.

● Txhim khu kev qha

● Teeb los ntawm kev nias lub raj

● Kev ua haujlwm siab sib txawv yog 2500 psi.

String Plaub lossis tsib txoj hlua tuaj yeem raug ntxiv rau kev txhaj tshuaj, siv tshuaj fiber lossis hla lub qhov hluav taws xob qhib lub qhov hluav taws xob yog tias xav tau los ntawm cov neeg siv khoom.

● Txhua hom xov muaj.

Cov Kev Ntsuas

Code	Cov cai	Casing cov cai	Casing Nyhav (phaus)	OD (hauv. [mm])	Thawj txoj hlua ID (hauv. [Hli])	Ob txoj hlua ID (hauv. [Mm])	Peb txoj hlua ID (hauv. [Hli])
ESP-3 1/2 -9 5/8	3 1/2 2 7/8	9 5/8	43.5-47	8.5[215.9]	2.99[76]	1.6[40.6] 1.9 NUG	1.5[38.1] 1.9 NUG
			47-53.5	8.38[212.7]
ESP-2 7/8 -7 5/8	2 7/8 2 3/8	7 5/8	26-29.7	6.6[167.64]	2.36[60]	1.5[38.1] 1.9 NUG	1.5[38.1] 1.9 NUG
			33.7	6.52[165.61]

Cim npe nrov: Fais Submersible Pump Packers, Tuam Tshoj, tuam ntxhab, kho, hauv Tshuag
