Tsaws roj txiv mis thiab roj
● Hom Lub Npe: VCTSY
● Qauv Zauv: FNP-2 7/8, FNP-3 1/2, FNP-4 1/2, FNP-5 1/2, FNP-7
● Yam tsawg kawg yuam kom muaj nuj nqis: 10 Poob
● Nqe: RMB/USD
Details Ntim Cov Lus Qhia: Plywood Case
● Lub Sijhawm Muab Tawm: Raws Li Kev Thov
Terms Cov nqe lus them nqi: T/T.
● Muaj Peev Xwm Muaj Peev Xwm: Raws Li Kev Thov

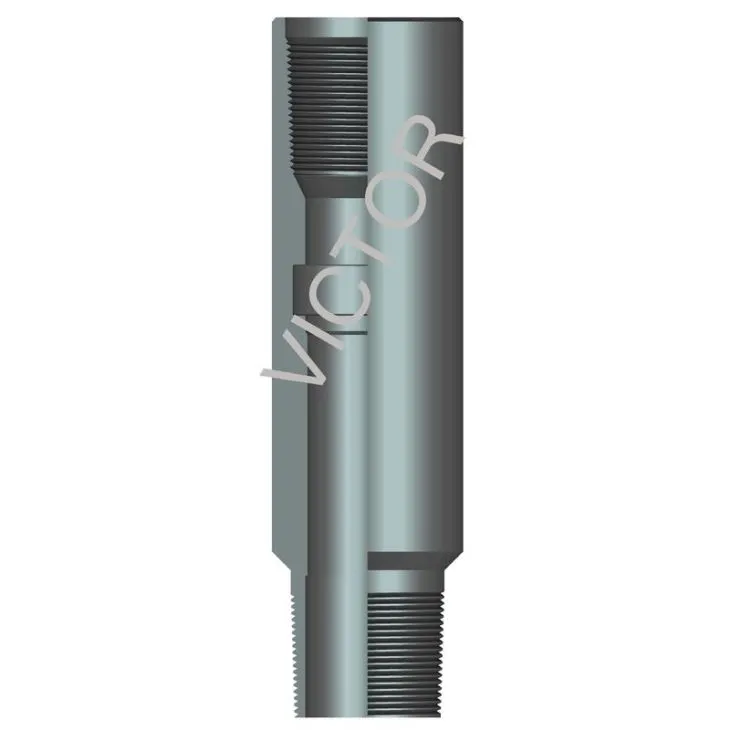

Tsaws Nipples (FNP Series, FNP-2 7/8 --- FNP-7), WP 5000-10000psi
FNP series cov txiv mis tau ntim thiab kaw cov cuab yeej sib phim nrog lub tub tuaj yeem rov tau txais kev nyab xeeb ntawm lub ntsej muag qub lossis hauv qab ntsaws ntsaws. Lub txiv mis no tau tsim nrog tus qauv F hom profile thiab du nto sib khi, uas muab txoj haujlwm ua haujlwm rau kev ua haujlwm ntawm kab thiab pab tswj cov kua.
Nta
● Tus qauv F hom profile muab txoj haujlwm ua haujlwm rau cov cuab yeej siv xov hlau.
● Cov nplaim nplaim nplaim muab kev ruaj ntseg ntsaws qhov qhib.
Selection Cov khoom xaiv rau lub cev: AISI4140, 9Cr1Mo, 13Cr, S13Cr thiab Inconel.
● Sib phim nrog tus qauv F hom xauv mandrel
● Txhua hom xov muaj.
Cov Kev Ntsuas
| Code | Cov cai | OD (hauv. [Mm]) | Seal bore (hauv. [Mm]) | Ua haujlwm siab (psi) |
| FNP-2 7/8 | 2 7/8 | 3.66 [93] | 1.81[45.97] | 5000~10000 |
| 1.87[47.50] | ||||
| FNP-3 1/2 | 3 1/2 | 4.5 [114] | 2.31[58.67] | 5000~10000 |
| 2.56[65.02] | ||||
| FNP-4 1/2 | 4 1/2 | 5.56 [141.3] | 3.12[79.25] | 5000~10000 |
| 3.31[84.07] | ||||
| FNP-5 1/2 | 5 1/2 | 6.56 [166.6] | 4.562[115.87] | 5000~10000 |
| FNP-7 | 7 | 7.66 [194.5] | 5.95[151.13] | 5000~10000 |
FAQ:
Q: Puas yog koj lub tuam txhab muaj Kev Tswj Xyuas Kev Ua Haujlwm Zoo?
A: Yog, API Q1& ISO 9001 daim ntawv tso cai.
Q:Koj lub koom haum puas muaj Kev Ua Haujlwm Noj Qab Haus Huv thiab Nyab Xeeb (OH& S) Kev Tswj Xyuas / Kev Tswj Xyuas Ib puag ncig nyob hauv qhov chaw?
A :Yog, Peb muaj HSM.
Q: Puas yog koj Lub Tuam Txhab Muaj Ntawv Pov Thawj thiab sau npe rau ib qho chaw thoob ntiaj teb lees paub Zoo lossis OH& S Kev Tswj Xyuas Txheej Txheem?
A:API 14A API11D1 API19G ISO9001 HSM
Q:Puas yog koj lub tuam txhab yog Tus Lag Luam/ Tus Lag Luam?
A: Peb yog cov chaw tsim khoom.
Tuam txhab Profile:
Hunan Victor Petrotech Service Co .. Ltd. Peb cov khoom lag luam npog tag "AZ &"; kev pabcuam daws teeb meem hauv qhov kev xeem ua tiav zoo. Peb tau txais ntawv pov thawj los ntawm ISO 9001 QMS thiab tau txais API Spec 11D1 Daim Ntawv Pov Thawj rau Packers& API Spec 14A Daim Ntawv Pov Thawj rau Kev Nyab Xeeb Kev Ruaj Ntseg.
Peb lub ntiaj teb-chav R& D faib tau ua haujlwm nrog peb lub tuam txhab kev lag luam txhawm rau txhim kho cov txuj ci tseem ceeb uas tab tom hloov kho txoj kev ua tiav kev xeem tiav. Peb qhov kev sim ua haujlwm thiab kev tiv thaiv patent thev naus laus zis tau siv rau hauv peb cov neeg siv khoom tam sim no. Los ntawm kev sib koom tes zoo nrog peb cov koom tes ua lag luam thoob ntiaj teb, peb muaj peev xwm txuas ntxiv txhim kho peb cov kab khoom thiab muab cov khoom lag luam uas ua tau raws li tus txheej txheem siab tshaj plaws.
Raws li yog ib tus thawj coj loj hlob sai tshaj plaws ntawm kev tsim cov tshuab roj av zoo tshaj plaws, peb cov khoom lag luam thiab kev pabcuam tau pab peb cov neeg siv khoom kom ua tiav lawv cov phiaj xwm kev tsim khoom nrog peb cov thev naus laus zis thev naus laus zis tsim los ntawm peb cov kws txawj ntse.
Ntawm VCTSY, peb tau cog lus peb tus kheej kom ua tiav thiab txuas ntxiv kev loj hlob ntawm peb cov neeg siv khoom. Los ntawm peb cov txheej txheem kev qhia tsim tshwj xeeb thiab phiaj xwm kev pabcuam zoo, peb muaj peev xwm pab peb cov neeg siv khoom kom loj hlob thiab rov qab los, loj hlob nrog lawv.
